U Channel Glass
U Channel Glass for architectural buildings
U Channel Glass is a cast glass product with a U-shaped cross-section. The profile gives the glass a channel structure that can be used to form continuous translucent wall systems with a relatively simple framing system. The U-shaped profile creates a linear architectural appearance. Different surface textures, colors, and coatings allow architects to control the appearance and light diffusion of the facade.
Laurel U profile glass is available in clear, low-iron, tinted, patterned, frosted, and other finish options. Custom specifications can be discussed according to project requirements.
For facade projects, U channel glass can be used as part of a curtain wall or translucent exterior wall system. Its channel profile also creates a different visual effect from conventional flat architectural glass. Laurel Glass supplies U channel glass for architectural projects, with a focus on building facades and exterior wall systems. The glass can be arranged vertically or horizontally depending on the project design. Single-layer and double-layer configurations can also be used for different facade requirements.
Technical Specifications
| Product Name | U Channel Glass / U Glass / U Profile Glass / U Shaped Glass |
| Thickness | Available in a range of thicknesses from 6mm to 12mm, allowing for customization based on structural and aesthetic requirements. |
| Size | Custom sizes available to fit various architectural needs. Standard sheet sizes can range from 1200mm x 2400mm to larger dimensions. |
| Surface Options | Clear, Low iron, Tinted, Patterned, Frosted |
| Coating Options | Low-E (Low Emissivity) / Enamel Colors / AZUR (Blue Tint) / Sandblast (Frosted) |
The exact available dimensions depend on the selected U profile and production requirements. Laurel Glass can confirm the suitable profile, width, thickness, and length based on project drawings and facade specifications.
Main Products
Benefits and Advantages of U Channel Glass
Strength & Durability
U profile glass is made from tempered or heat-strengthened safety glass; it's robust and resistant to impact.
Design Versatility
U glass can be used vertically or horizontally, in flat or curved applications, and is available in various textures, colors, and tints.
Energy Efficiency
U channel glass significantly improves a building's energy performance, reducing heating/cooling needs.
Self-Supporting Structure
U-profile glass systems are commonly used for large translucent wall and facade areas with limited visible framing.
Applications of U channel glass
Building Facades
U channel glass is mainly used for architectural building facades and exterior walls. For buildings that require daylighting without fully transparent glazing, U glass provides a translucent wall option. The textured surface can soften direct views through the wall while maintaining natural light transmission.

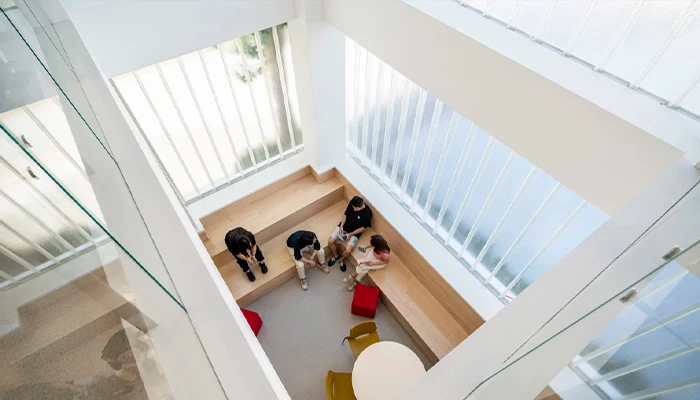

Curtain Wall Systems
U profile glass can be incorporated into curtain wall systems for commercial and architectural buildings. It can also be used on selected architectural feature walls where the channel profile and repeated vertical lines form part of the building design.
Laurel Glass: U Channel Glass Manufacturer & Supplier
Laurel Glass manufactures and supplies architectural glass for international construction projects. Our U channel glass production can be customized around project requirements, including profile dimensions, surface textures, colors, and selected coatings.
Frequently Asked Questions
Q: What is U channel glass?
A: U channel glass is a cast glass product with a U-shaped cross-section. It is also known as U glass, U profile glass, U shaped glass, or channel glass. It is mainly used to create translucent architectural wall and facade systems.
Q: What is U channel glass used for?
A: U channel glass is mainly used for building facades, exterior walls, curtain wall systems, and architectural feature walls. It can be used where a translucent glass facade is required.
Q: Can U channel glass be customized?
A: Yes. Laurel Glass can discuss customized dimensions, surface finishes, and coating options based on the project requirements. The available dimensions should be confirmed before production.
Q: Can U glass be used for exterior facades?
A: Yes. U profile glass is used for exterior architectural walls and facade systems. For an exterior project, the glass profile, thickness, dimensions, installation structure, and local project requirements should be confirmed before production.
Q: Does Laurel Glass supply U profile glass for overseas projects?
A: Yes. Laurel Glass supplies architectural glass for international construction projects and can discuss U channel glass specifications, packaging, and shipping requirements with overseas customers.
Get More Informations
Looking for a U channel glass supplier, U glass manufacturer, or U profile glass factory for an architectural project?
Send us your required dimensions, glass thickness, surface finish, quantity, and application. If you have facade drawings or project specifications, you can also send them to our team for review.
